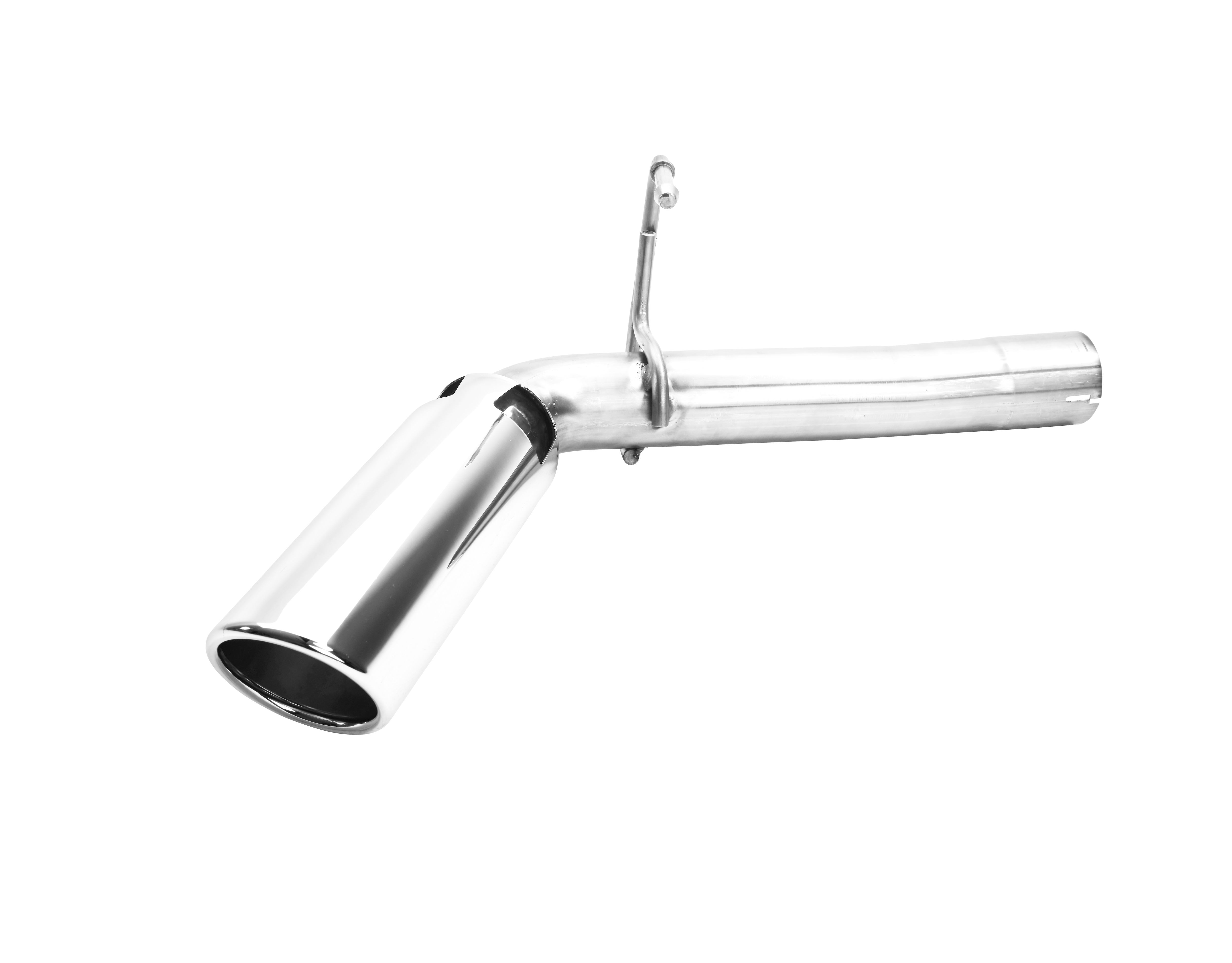

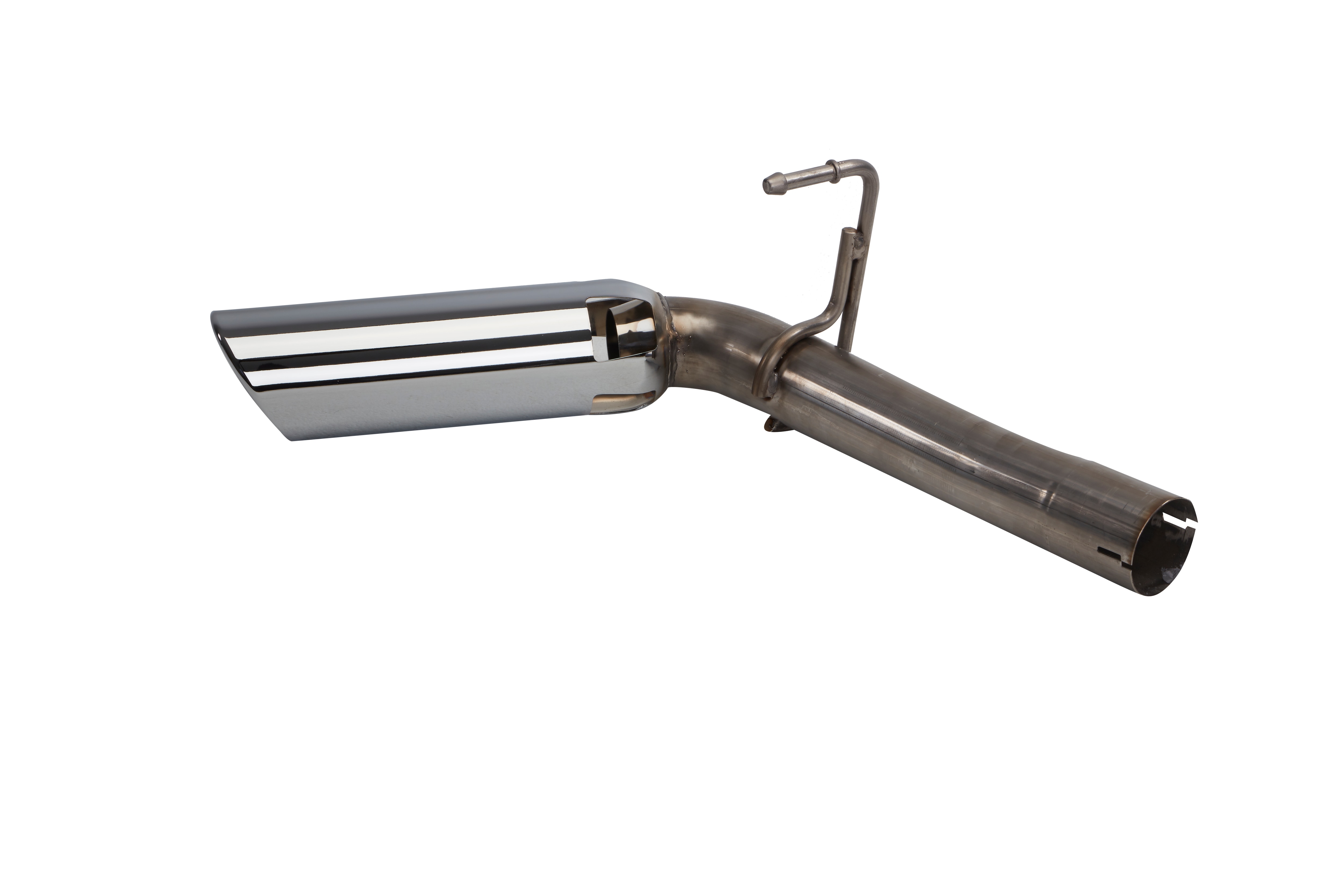

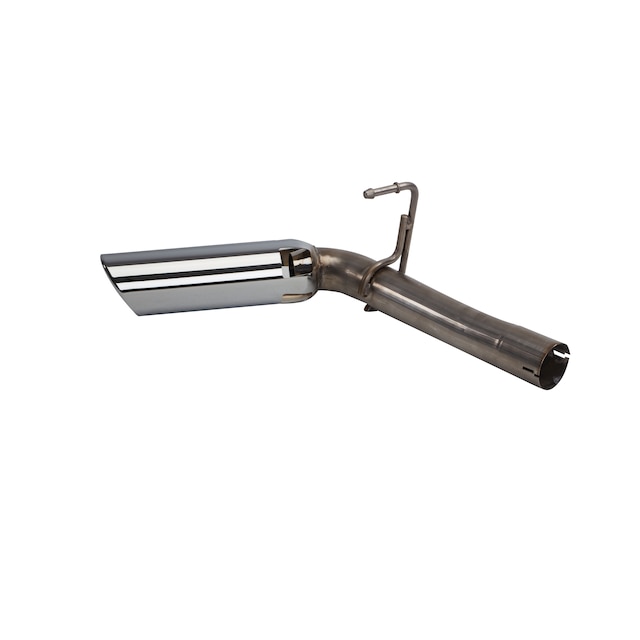

2.8L Diesel Exhaust Tip Relocation Kit

2.8L Diesel Exhaust Tip Relocation Kit

GM Part #84506201

MSRP$395.00*

Designed for rock crawling and off-road enthusiasts looking for maximum exhaust tip clearance the Chevrolet Performance Exhaust Tip Relocation Kit offers enhanced off-road clearance while maintaining the rest of the factory exhaust system.

  • Specifically designed to increase exhaust tip clearance by up to 2-inches in challenging off-road conditions
  • Ideal for rock crawling, high-articulation scenarios, or anywhere additional clearance is required
  • Improves exhaust tip departure angle by 9-degrees

About this product

Designed for rock crawling and off-road enthusiasts looking for maximum exhaust tip clearance the Chevrolet Performance Exhaust Tip Relocation Kit offers enhanced off-road clearance while maintaining the rest of the factory exhaust system. Built from 304 Stainless Steel, the high-clearance relocation kit features 2.75” OD tubing and a single wall high-polish 4-inch slash cut tip for great looks on and off-road. Installation of the Exhaust Tip Relocation Kit requires cutting the factory supplied system but will not void the New Vehicle Limited Warranty and is legal in all 50 states. The high-clearance system includes a clamp, 2.75-inch pipe, integrated exhaust hanger, a welded 4-inch high-polished tip, and installation instructions. This system helps increase exhaust tip ground clearance by up to 2-inches and improves the exhaust tip departure angle by up to 9-degrees. This system works to decrease the chance of impacting exhaust tip during off-road events.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Specifically designed to increase exhaust tip clearance by up to 2-inches in challenging off-road conditions
  • Ideal for rock crawling, high-articulation scenarios, or anywhere additional clearance is required
  • Improves exhaust tip departure angle by 9-degrees
  • Works to decrease the chance of impacting the exhaust tip during off-road events
  • Built from 2.75-inch 304 Stainless Steel featuring a high-polish 4-inch exhaust tip
  • Legal in all 50 states
  • Will not void the New Vehicle Limited Warranty

Grade TypeStandard Performance
Outlet Outside Diameter3.98 in / 101 mm
Tapered OutletYes
Length23.7 in / 602 mm
Inlet Outside Diameter2.87 in / 73 mm
Inlet Inside Diameter2.8 in / 71 mm
Outlet Inside Diameter3.9 in / 99 mm
Programming RequiredNo
Universal Or Specific FitSpecific
Clamps IncludedYes
Flanged InletNo
Welded HangerYes
FinishChrome
ColorSilver
Material304 Stainless Steel

The greater of either the balance of the vehicle's bumper to bumper warranty or 12 months / 12,000 miles

ModelBody StyleTrimYear(s)
ColoradoLT, WT, Z712020, 2021, 2022

Frequently Asked Questions

Yes, this system is specifically designed to enhance off-road obstacle clearance over challenge terrain.

Does this replace my factory exhaust system?

Installation of this system will not void your New Vehicle Limited Warranty.
